Online payments with Stripe

Where: Configuration → Online payments. Who: owners only (payment credentials are reserved to the owner).

With Stripe customers pay online by card and wallet (Apple Pay, Google Pay and the other methods you enable on Stripe) and the money goes straight to the establishment’s Stripe account. Arenile takes nothing: you pay only Stripe’s fees.

/admin/e/…/config/payments

How it works (in short)

1. The customer completes the steps and presses Pay: the spot stays held for them while they pay (up to 30 minutes).
2. Stripe Checkout opens at full window, even if the page was embedded in your website.
3. Stripe collects the money and notifies Arenile with a signed webhook.
4. Arenile verifies the signature, records the payment and confirms the booking, all in a single operation. The customer returns to the page, which shows the confirmation, and receives the email.

Confirmation only comes from Stripe

A booking is never confirmed because the customer’s browser “comes back” from the payment page: only Stripe’s signed webhook (or reconciliation, which queries Stripe) can confirm it. That is why the webhook must be configured: without it payments reach Stripe but bookings stay pending until reconciliation recovers them.

Step-by-step setup

1. Create or open the establishment’s Stripe account at stripe.com and complete the business details. You can start in test mode before verification is complete.

2. Copy the API keys. In the Stripe dashboard open Developers → API keys (with the “Test mode” switch on for test keys):

   • the publishable key (pk_test_… or pk_live_…);
   • the secret key (sk_test_… or sk_live_…).

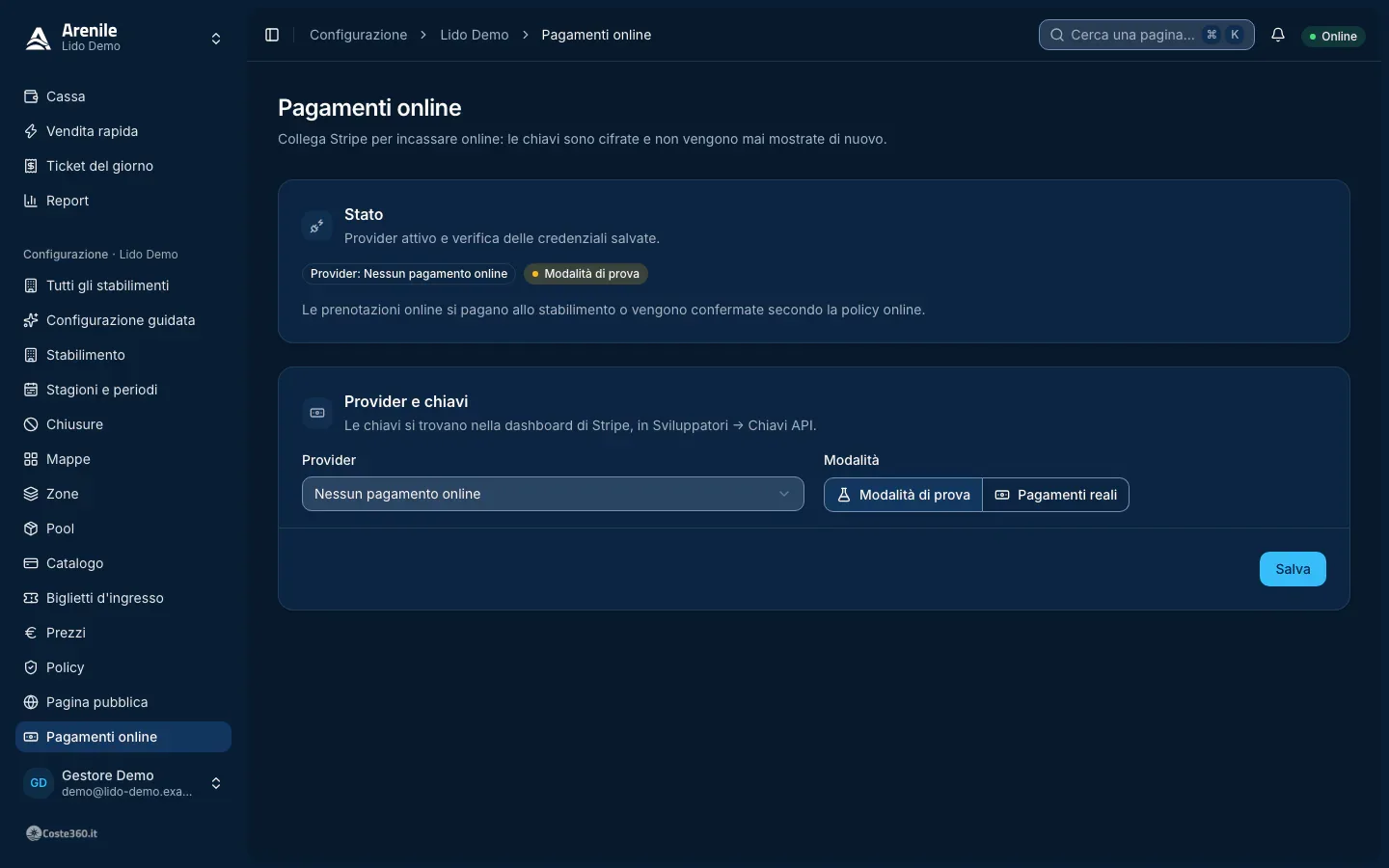

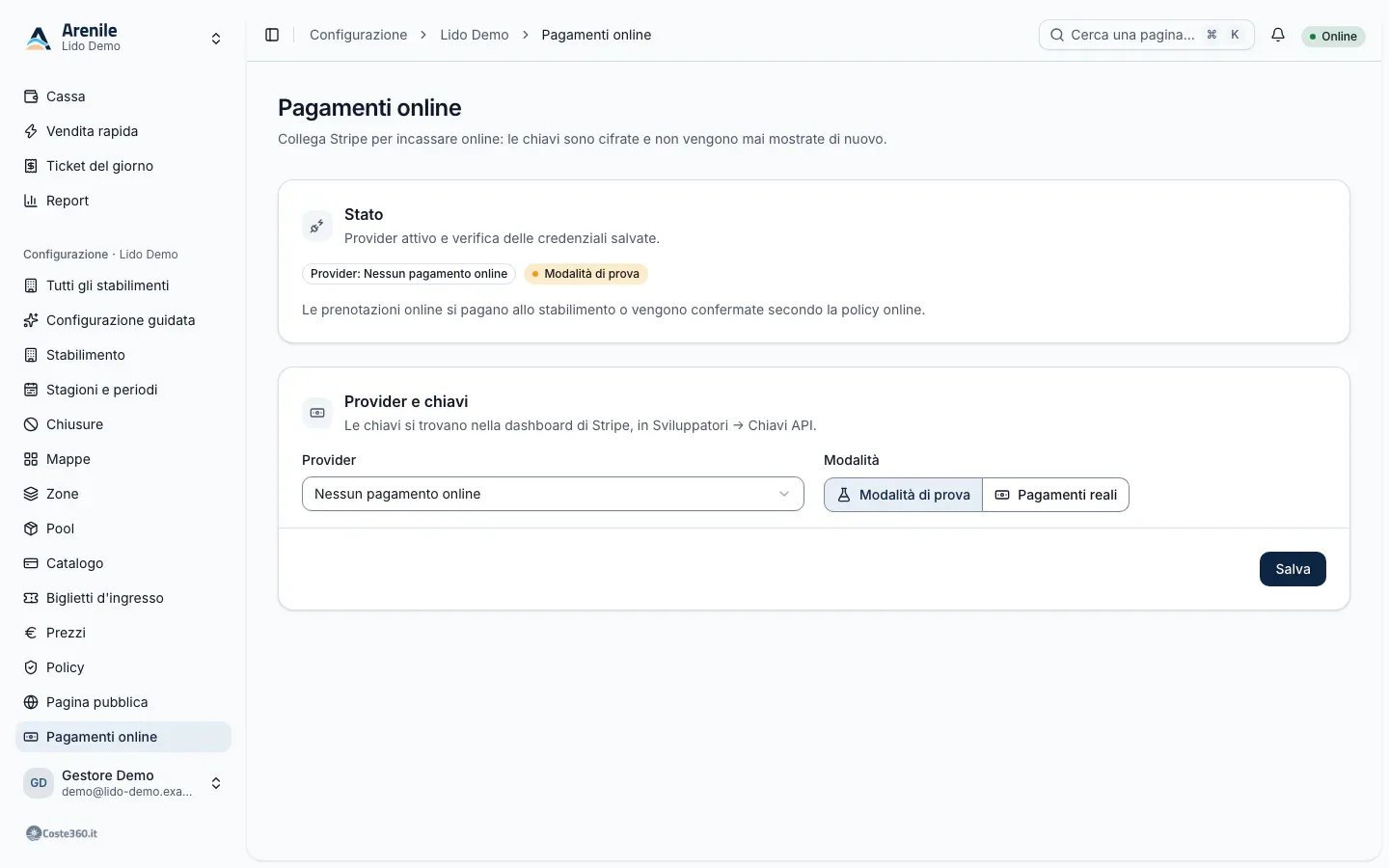

3. In Arenile open Configuration → Online payments, choose the Stripe Checkout provider, Test mode and paste the two keys. Save.

4. Copy the webhook URL shown on the page. It looks like this:

   https://prenota.mio-lido.it/webhooks/payments/stripe/<establishment-id>

5. Create the webhook on Stripe. In Developers → Webhooks → Add endpoint: paste the URL and select these events:

   Event	Purpose
   checkout.session.completed	Payment completed with Checkout: confirms the booking
   checkout.session.async_payment_succeeded	A delayed payment method (for example SEPA debit) succeeded: confirms
   checkout.session.async_payment_failed	A delayed payment failed: the customer can retry while the hold is valid
   checkout.session.expired	The payment session expired without a payment
   charge.refunded	Refund made on Stripe: recorded in Arenile
   refund.failed	Refund failed: Arenile flags it and it can be retried

   The panel shows the same list next to the URL.

6. Copy the webhook signing secret (whsec_…, “Signing secret”) and paste it into Arenile as the webhook secret. Save.

   If Arenile runs on a local address (this computer, localhost or the establishment’s network), Stripe cannot reach it and the panel says so: to try payments, use the Stripe CLI, stripe listen --events <events of the list> --forward-to <webhook URL>, and paste the secret it prints (whsec_…).

7. Verify. Press Check credentials: Arenile asks Stripe for the account details and shows the business name if the keys are right.

8. Try a booking. Turn on Arenile’s Test mode, create the preview link and book from the public page, ideally from your phone, with the test card 4242 4242 4242 4242 (any future date and CVC). Check that the confirmation arrives and that the booking is Confirmed and paid in the panel. Then turn test mode off and delete the test bookings.

9. Go live. Repeat steps 2–6 with the “Test mode” switch off (live keys and a new live webhook with its own secret) and choose Live payments in Arenile.

Test keys and real customers

With Stripe set to test mode (sk_test_… keys) and Arenile’s Test mode off, online payments of real customers are blocked: otherwise anyone could “pay” with a test card and get a confirmed booking for free. The public page tells the customer that online payment is not available and to contact the establishment; the booking is not completed and never confirmed. In the panel, Online payments and Public page show the red warning Online payments blocked for real customers. To unblock, enter the live keys and choose Live payments, or turn on Test mode if you are still trying the flow. Bookings paid on arrival or with nothing to pay are not affected.

Your keys are safe

Secret keys are encrypted before being saved and are never shown again: the panel only says they are configured and shows the last four characters. To change them paste the new value; leaving the field untouched keeps the saved key. Test and live credentials are saved separately. They never end up in logs or in the activity log.

Payment modes

Stripe Checkout (default)

The payment page hosted by Stripe, at full window. The most robust solution inside iframes and on every browser, with all the methods you enable on Stripe.

Embedded form (coming soon)

Stripe’s Payment Element inside the booking page, without changing page. In the panel the Payment embedded in the page option is visible but cannot be turned on yet: today payment always opens on Stripe Checkout’s secure page.

How much is paid online (everything, a deposit or nothing) is decided by the policy scoped to the Online channel. When the online policy has payment on arrival, the online booking is confirmed without payment and paid at the desk.

Manual payment

If you choose the No online payment provider (or do not configure Stripe) there is no online payment: online bookings are confirmed (or go to approval) and the balance is collected at the cash desk in cash, card or bank transfer.

Reconciliation

The internet is not perfect: a webhook can get lost. That is why Arenile, every 15 minutes, asks Stripe for the outcome of payments pending for more than 10 minutes and applies the result with the same procedure as the webhook. A webhook arriving late is never applied twice.

The reconciliation report compares the payments at Stripe with Arenile’s ledger and flags:

Issue	Meaning
Pending for more than 10 minutes	The payment has no outcome yet: usually a missing webhook
Different outcome	Stripe says “succeeded” or “failed” and Arenile does not
Payment without ledger entry	Stripe collected but the ledger has no matching row
Different amount	The amounts do not match
Provider unreachable	Stripe did not answer or the driver cannot check

You can also run reconciliation by hand from the same report.

Refunds

From the booking detail, a refund on a payment made with Stripe can be made through Stripe: the money goes back to the customer’s card. The refund stays Pending until Stripe confirms it (charge.refunded webhook or reconciliation), then becomes Succeeded. A refund made directly from the Stripe dashboard is also recorded in Arenile. A refund can never exceed what was paid.

Cancelling a booking computes the refund from the terms the customer accepted; you can refund in money or as credit to the customer.

Troubleshooting

Symptom	What to check
Warning “Online payments blocked for real customers”	Stripe is in test mode and Arenile’s Test mode is off: switch to the live keys or turn on Test mode
The credentials check fails	Secret key of the wrong mode (test or live) or revoked key
Payment succeeded on Stripe but booking still pending	Webhook not created, wrong URL (domain, establishment id) or wrong signing secret. The Stripe dashboard shows delivery errors; reconciliation recovers within 15 minutes
Stripe reports 400 errors on the webhook	Wrong signing secret or one from the other mode (test vs live)
The customer sees “The payment service is not responding”	Stripe temporarily unreachable: the page invites them to retry shortly
The hold expired during payment	The customer took more than 30 minutes: if the payment arrives anyway, check the reconciliation report and handle the booking from the panel
